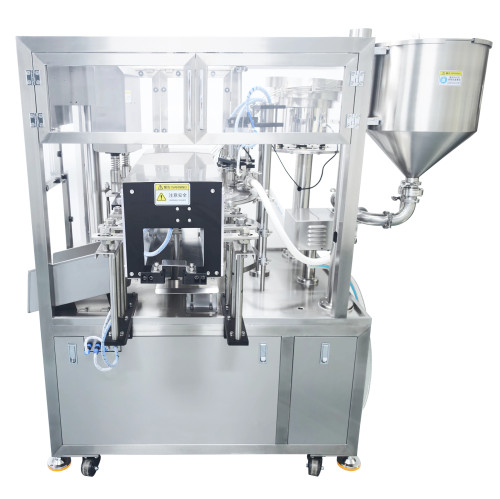

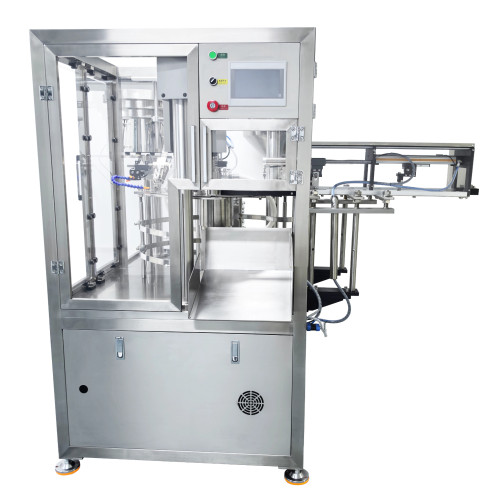

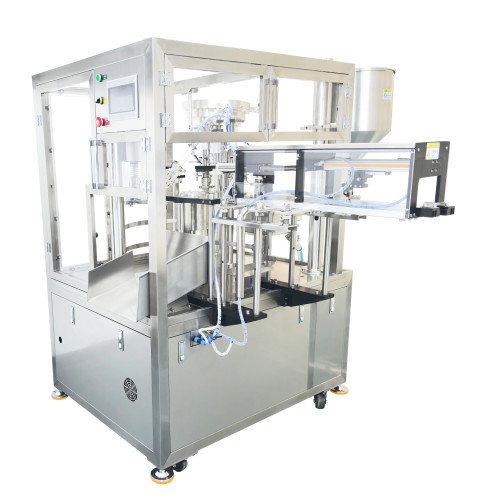

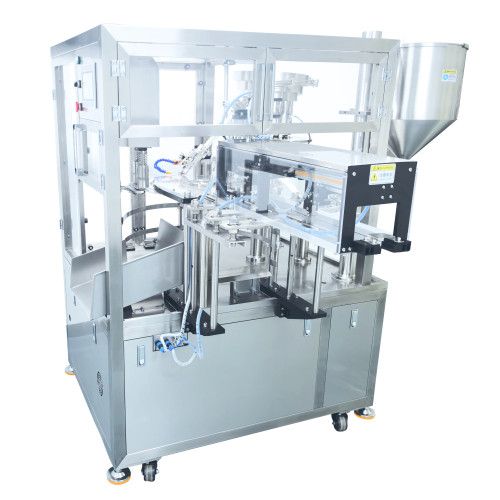

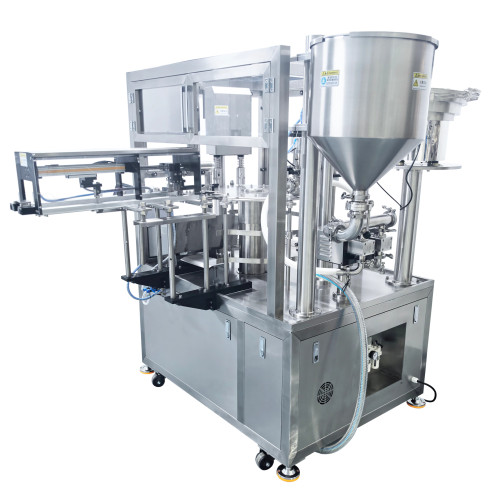

Six-head Automatic Spout Bag Liquid Packaging Machine is Suitable for Food, Daily Chemicals & Medical
Item specifics
- Packaging products
- Liquid and pastes
- Filling specification
- 30-2000ML
- Hopper size
- 150L（304 stainless steel ）
- Machine power
- 8Kw
Review
Description
Introduction of Six-head Automatic Spout Bag Liquid Packaging Machine
This six-head automatic spout bag liquid packaging machine for liquids is an efficient and precise device for quantitative filling and sealing of liquids.
High-speed production: This is the most significant feature. With six workstations, it can simultaneously complete the operations for six nozzles, significantly increasing production speed compared to traditional single-head, double-head, or four-head models. Its packaging speed can typically reach 60-70 bags per minute or even higher, making it ideal for large-scale industrial production.
Continuous operation: Through a sophisticated mechanical structure (such as a turret or rotating worktable), processes such as bag picking, filling, nozzle placement, sealing, punching, and date printing are performed continuously, reducing intermittent waiting time and further ensuring production capacity.
Machine Key Components of Six-head Automatic Spout Bag Liquid Packaging Machine
* Storage Hopper:
The primary container that holds the bulk product before it is precisely measured and dispensed.
* Control Panel:
The user interface for operators to manage and monitor all machine functions and settings.
* Bag Gripping & Manipulation Unit:
The mechanism (likely pneumatic clamps) that securely holds the open mouth of the bag in place under the nozzles during the filling process.
* Weighing Scale:
The core unit for accurately measuring the product weight (integrated within the structure below the hopper).
* Ribbon Code Printer:
An integrated printer that applies essential information like expiration dates, batch numbers, or barcodes onto the filled bags.
* Dual Nozzles:
The filling heads that dispense the pre-weighed product into open bags, allowing for simultaneous filling and increased speed.
* Output Feeding Conveyor:
The final conveyor belt that transports the finished, sealed, and coded bags away from the machine for further handling, boxing, or palletizing.
* Gear pump:
As the driving gear and driven gear keep rotating, the pump can continuously suck in and discharge the liquid.
