Summary
Theme: big volume vertical granule packaging machine
Published by : Fame Machinery
Country: South Korea
Customer: chemical fertilizer factory
Packed by: transparent plastic film
South Korea client's success with our big volume granule packaging machine from Fame Machinery
- Share
- Issue Time
- 2025/11/16 22:00:06
South Korea client's success with our big volume granule packaging machine from Fame Machinery
Theme: big volume vertical granule packaging
machine to pack chemical fertilizer
Published by : Fame Machinery
Country: South Korea
Customer: chemical fertilizer factory
Packed by: transparent plastic film
Order requirements
1.As a chemical fertilizer factory,we plan to improve the packaging solution based on the demand from the market.we wish to pack each bag 20 kgs of granule fertilizer to sell, the bag size can be 500mm*630mm,each packaging should be vacuum,back seal, the production capacity 5-10 bags per minute is acceptable.
2.The packaging accuracy for each bag should be good.
3.Each bag should printed date, Ribbon coding machine and finished products conveyor are necessary.
The solution
1.After evaluating the client’s requirements,we advise to use our 1030mm big volume vertical granule packaging machine with vacuum system, production capacity can meet 5-10 bags per minute.
2.To meet the packaging accuracy,we advise to use 2 heads electric scale which can measure maximum 25 kgs.
3.Ribbon coding machine and finished products conveyor with big size will be equipped.
4.The plastic film for test will be 1030mm for width,630mm for width,back seal.
5.Based on the whole packaging machine is big and tall, Z shape feeding elevator and working platform should be equipped.

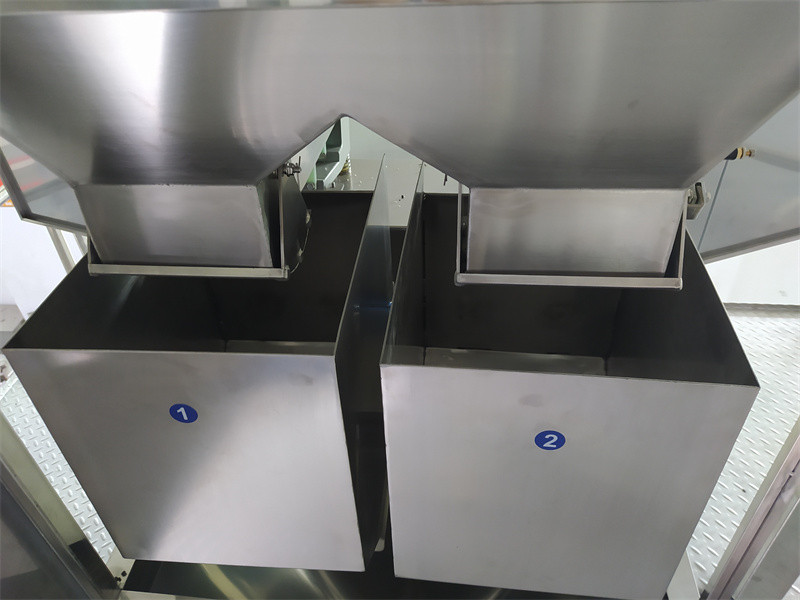

two heads electric scale with fertilizer granules

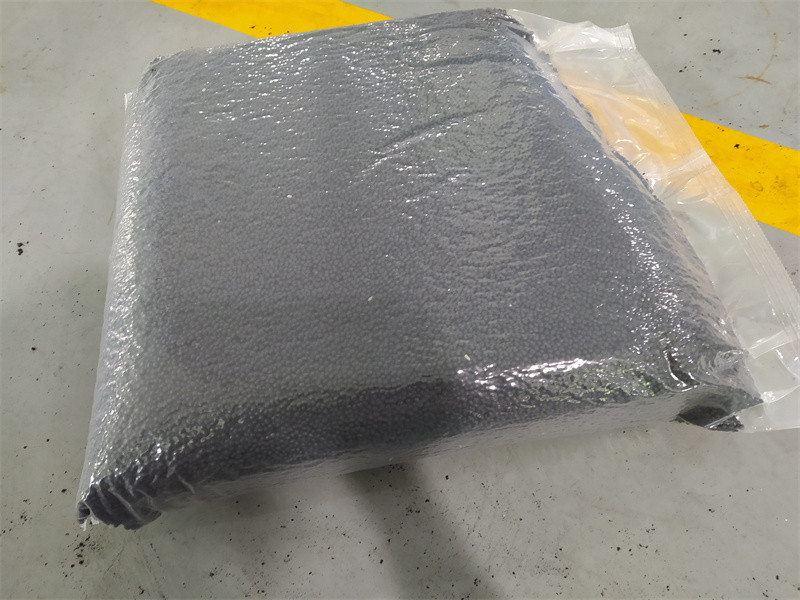

vacuum packaging for fertilizer granules

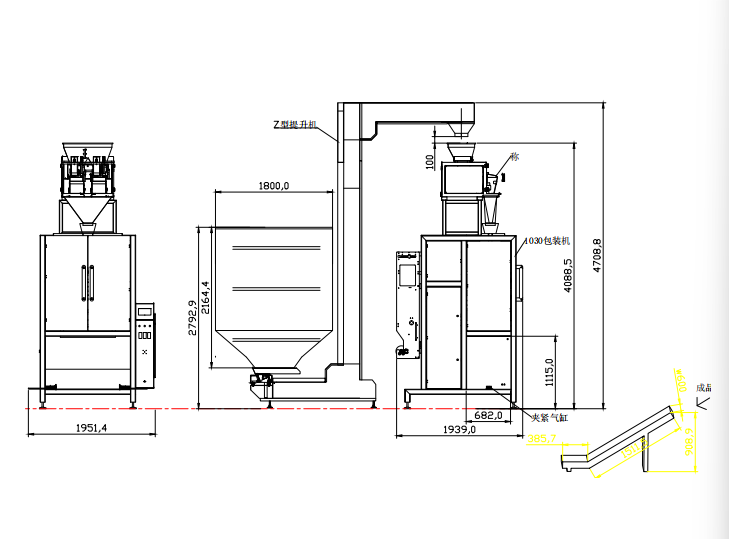

complete design drawing for packing solution

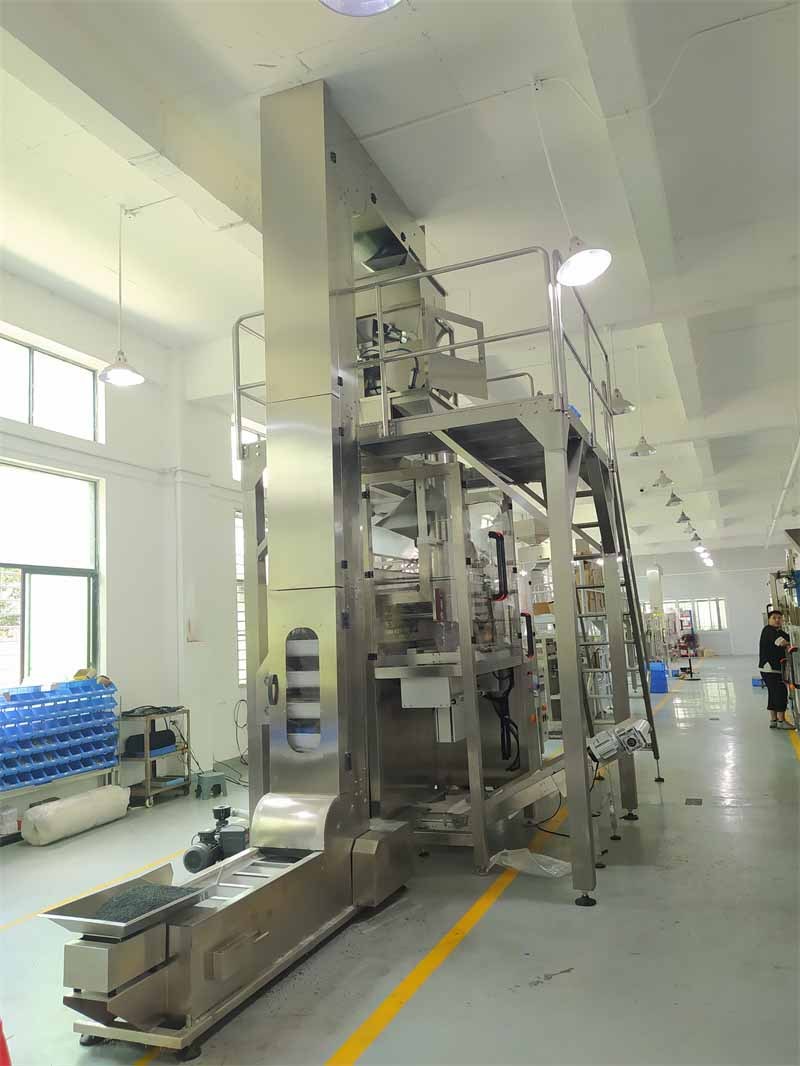

big volume vertical granule packaging machine to pack fertilizer with vacuum packaging
vacuum packaging for chemical fertilizer
Z shape feeding machine for fertilizer
two heads electric scale to keep the accuracy
Feedback from client
South Korea client gives his sincere feedback:
The granule packaging machine kept in working for two years since we bought from your company,it runs well so far, we are lucky for this packaging machine, your team always gives us quick reply when we have some questions about the operation system. Thanks for your service.
Why choose Fame Machinery ?
1.we specialize in customizing packaging solutions,to meet different requirements from different clients.
2.High accuracy and speed : Fame Machinery provide different packaging machines,like bottle filling machines,liquid packaging machine, powder packaging machine, paste packaging machine, sauce filling machines, carton packing machine, blister packaging machine, labeling machines,sealing machines,wrapping machines,vacuum packaging machines etc.no matter what kind of packaging machines,we are committed to providing high accuracy and speed for our each packaging machine.
3.We provide one year warranty for our packaging machines and lifelong consultation service for free. As the after-sales service,we also provide door-to-door service,remote operation guidance by video call or online consultation service etc.
